| Lugar de origen: | Jiangsu.China |
|---|---|
| Nombre de la marca: | Dagyee |
| Certificación: | ISO9001 |
| Número de modelo: | DT200 |
| Cantidad de orden mínima: | 1PCS |
| Precio: | negotiable |
| Detalles de empaquetado: | La caja de madera, envase estándar, clientes puede especificar requisitos |
| Tiempo de entrega: | 20-30 días del trabajo |
| Condiciones de pago: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Capacidad de la fuente: | 30set |
| Condición: | Nuevo | Nombre de producto: | preparación de los polímeros que dosifica el sistema |
|---|---|---|---|
| Material: | Soporte de acero, 304 316 | Peso neto: | 250 KILOGRAMOS |
| Dosificación de la operación: | Entrega automática | Uso: | Preparación química |
| Característica: | Fabricación automática de los polímeros | Paquete: | Plástico y madera |
Dagyee DT200 SUS316 Chemical Dilution Control Systems Polymer Preparation Unit

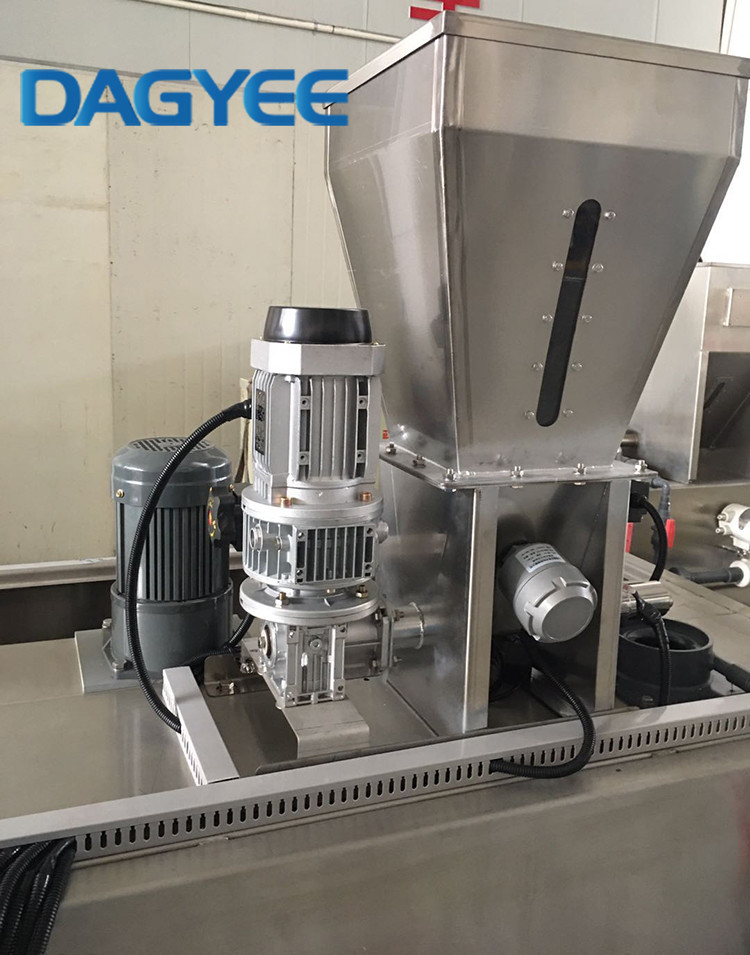

Polymer preparation with three tanks for mixing chemical with water. Dosing port at the top for filling chemical and water; the bottom has a sewage outlet for cleaning solution tank. This dosing device used for dosing PAM (polyacrylamide) which can realize integration of PAM powder feeding, dissolving and dosing. The device integrates both automatic and manual operation.
| Model | DT200 |
| Capacity(L/h) | 200 |
| Power(kw) | 0.54 |
| Powder dosage(kg/h) | 0.20 |
| Water inlet flow(m3/h) | 0-0.2 |
| L(mm) | 940 |
| B(mm) | 520 |
| H(mm) | 1450 |
| L1(mm) | 860 |
| B1(mm) | 470 |
| Net weight(kg) | 250 |
The Feature Of Dissolver Dosing Device
Complete PAM Batching Metering Systems
